Ultrasound Image Capture
The following is specific to SonoSite machines.

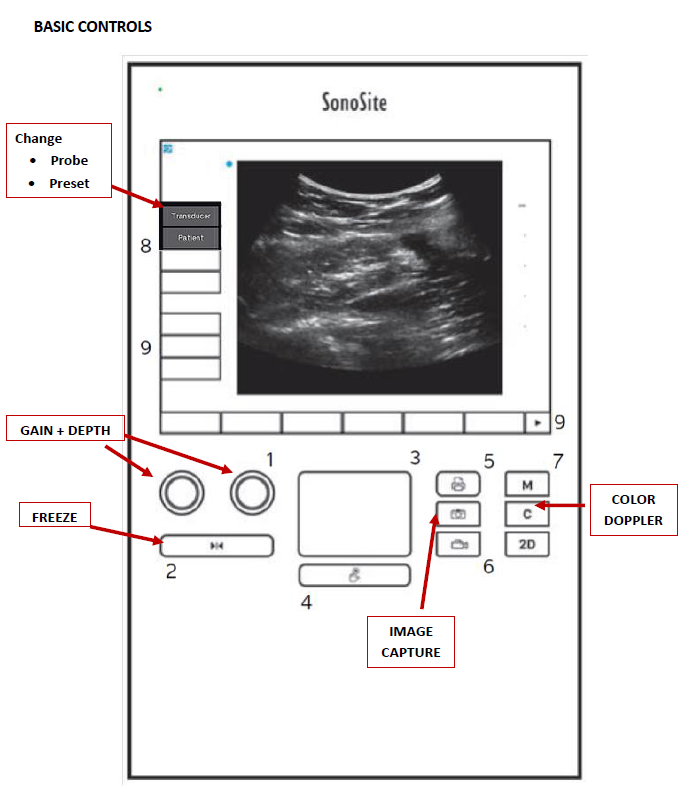

To capture adequate images and store them the basic controls to find on your machine include:
- Patient
- Gain
- Depth
- Freeze
- Image capture

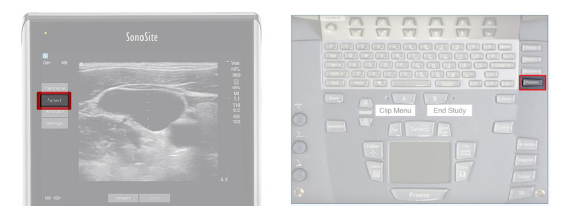

1. Hit Patient

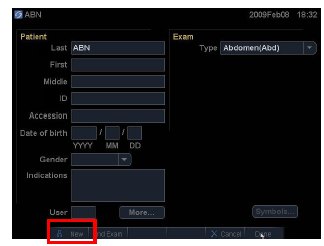

2. Hit New
This will end the previous encounter
Enter patient information, including MRN (under ID)
3. Hit Done
4. Snap images directly with the “Save” button or “Freeze” then “Save”

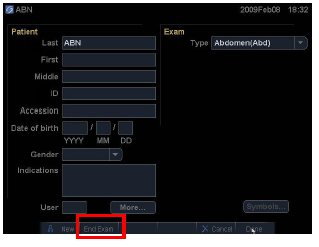

5. Hit End to close encounter and synch with the pt’s chart
Back the CVC flowchart, US PIV flowchart, Paracentesis flowchart, Thoracentesis flowchart, or LP flowchart
